Blocks

Block definitions, shapes, registries, and the Face constant.

BlockDefinition

Describes a block type: its shape, textures, and physics behaviour.

/**
 * Describes a block type: its shape, per-face texture tiles, and collidability.
 * Block ID 0 is always air and is never stored in the registry.
 */
export interface BlockDefinition {
  /**
   * Unique numeric identifier.
   * @note
   * 0 is reserved for air.
   **/
  id: number;
  /** Human-readable name for editor display. */
  name: string;
  /** ID of the BlockShape to use for geometry generation. */
  shapeId: BlockShapeID;
  /**
   * Per-face tile references.
   * If a face is absent, defaultTexture is used.
   * Allows blocks to have a different top texture from their sides.
   */
  faceTextures: Partial<Record<FACE, TileRef>>;
  /** Fallback tile used for any face not listed in faceTextures. */
  defaultTexture?: TileRef;
  /**
   * If false, the mesh builder will not emit
   * collision geometry for this block.
   **/
  collidable: boolean;
}

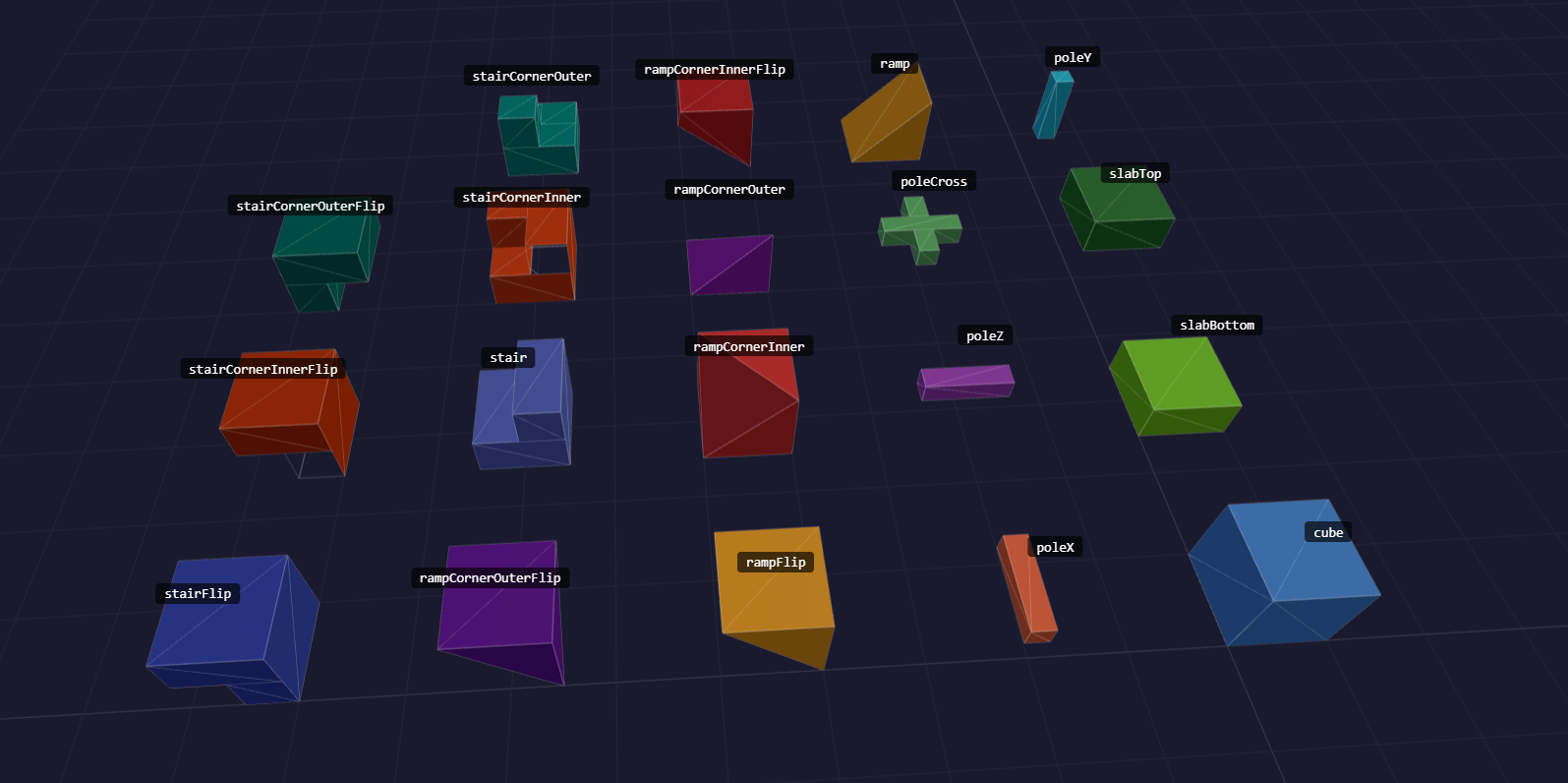

BlockShapeID

type BlockShapeID =
  | "cube"
  | "slabBottom"
  | "slabTop"
  | "poleY"
  | "pole"
  | "ramp"
  | "rampCornerInner"
  | "rampCornerOuter"
  | "stair"
  | "stairCornerInner"
  | "stairCornerOuter"
  | (string & {}); // custom shapes registered at runtime

The (string & {}) tail means any string compiles, but unknown IDs fail silently at runtime — the voxel is skipped. Always use a built-in ID or one registered via BlockShapeRegistry.register().

BlockCollisionHint

type BlockCollisionHint = "box" | "trimesh" | "none";

• "box" — compound cuboids; one per solid voxel. Cheapest; best for full-cube worlds.
• "trimesh" — exact triangle mesh built from rendered geometry. Accurate for slopes; may ghost-collide on shared edges.
• "none" — no collision geometry. Use for decorative or trigger blocks.

See Collision for more information.

FaceDefinition

Geometry descriptor for one polygonal face of a block shape.

interface FaceDefinition {
  /** Axis-aligned culling direction used to find the neighbor to check. */
  face: FACE;
  /** Outward-pointing surface normal (need not be axis-aligned). */
  normal: Vec3;
  /** 3 (triangle) or 4 (quad) positions in 0-1 block space. */
  vertices: readonly Vec3[];
  /** Same count as vertices; UV coordinates in 0-1 tile space. */
  uvs: readonly Vec2[];
}

A quad is triangulated as [0,1,2] + [0,2,3].

BlockShape

Interface implemented by all shape classes.

interface BlockShape {
  readonly id: BlockShapeID;
  readonly faces: readonly FaceDefinition[];
  readonly collisionHint: BlockCollisionHint;
  occludes(face: Face): boolean;
}

occludes(face) returns true only when the shape fully covers the given face, allowing the mesh builder to skip the opposite face on the neighbour. Partial shapes (ramps, wedges) must return false to avoid incorrect face culling.

BlockRegistry

Maps numeric block IDs to BlockDefinition objects. Accessible via VoxelRenderer.blockRegistry.

register(def: BlockDefinition): this

Registers a block definition. Throws if def.id === 0.

get(id: number): BlockDefinition | undefined

has(id: number): boolean

getAll(): IterableIterator<BlockDefinition>

BlockShapeRegistry

Maps shape IDs to BlockShape implementations. Pre-populated with all built-in shapes by VoxelRenderer. Accessible via VoxelRenderer.shapeRegistry.

register(shape: BlockShape): this

get(id: BlockShapeID): BlockShape | undefined

has(id: BlockShapeID): boolean

static createDefault(): BlockShapeRegistry

Creates a standalone registry pre-loaded with all built-in shapes.

Face

Axis-aligned face directions used for culling decisions and per-face texture references.

const Face = {
  PosX: 0, // +X
  NegX: 1, // -X
  PosY: 2, // +Y (top)
  NegY: 3, // -Y (bottom)
  PosZ: 4, // +Z
  NegZ: 5  // -Z
} as const;

type Face = typeof Face[keyof typeof Face];
